Understanding Sine Wave Fin Coils: Enhancing Efficiency in Heat Exchangers

In the world of heat transfer technology, sine wave fin coils stand out as a sophisticated innovation designed to optimize performance in HVAC systems, refrigeration units, and industrial heat exchangers. These coils feature fins shaped in a smooth, undulating sine wave pattern, which distinguishes them from traditional flat or louvered designs. By promoting enhanced airflow turbulence without excessive pressure drops, sine wave fin coils deliver superior thermal efficiency, making them a preferred choice for modern applications where energy savings and compact design are paramount.

What Are Sine Wave Fin Coils?

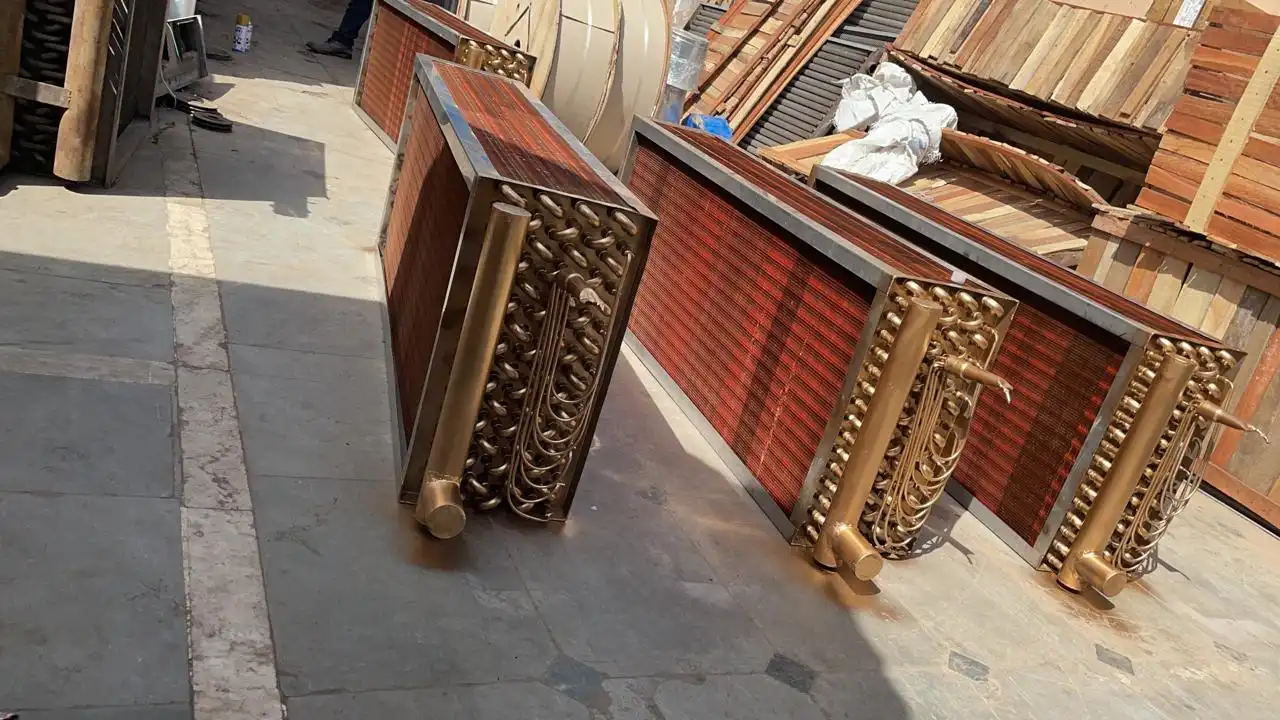

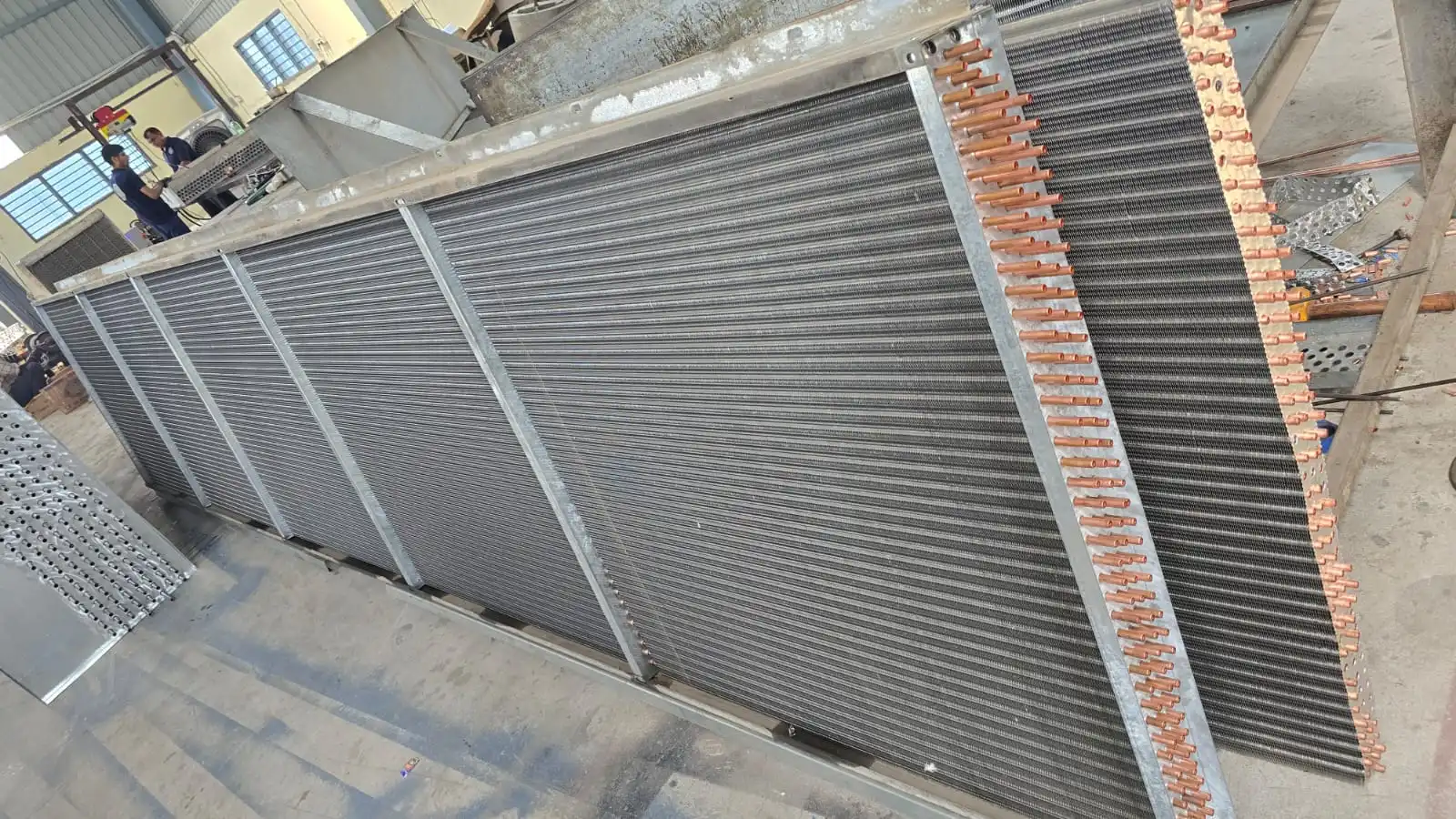

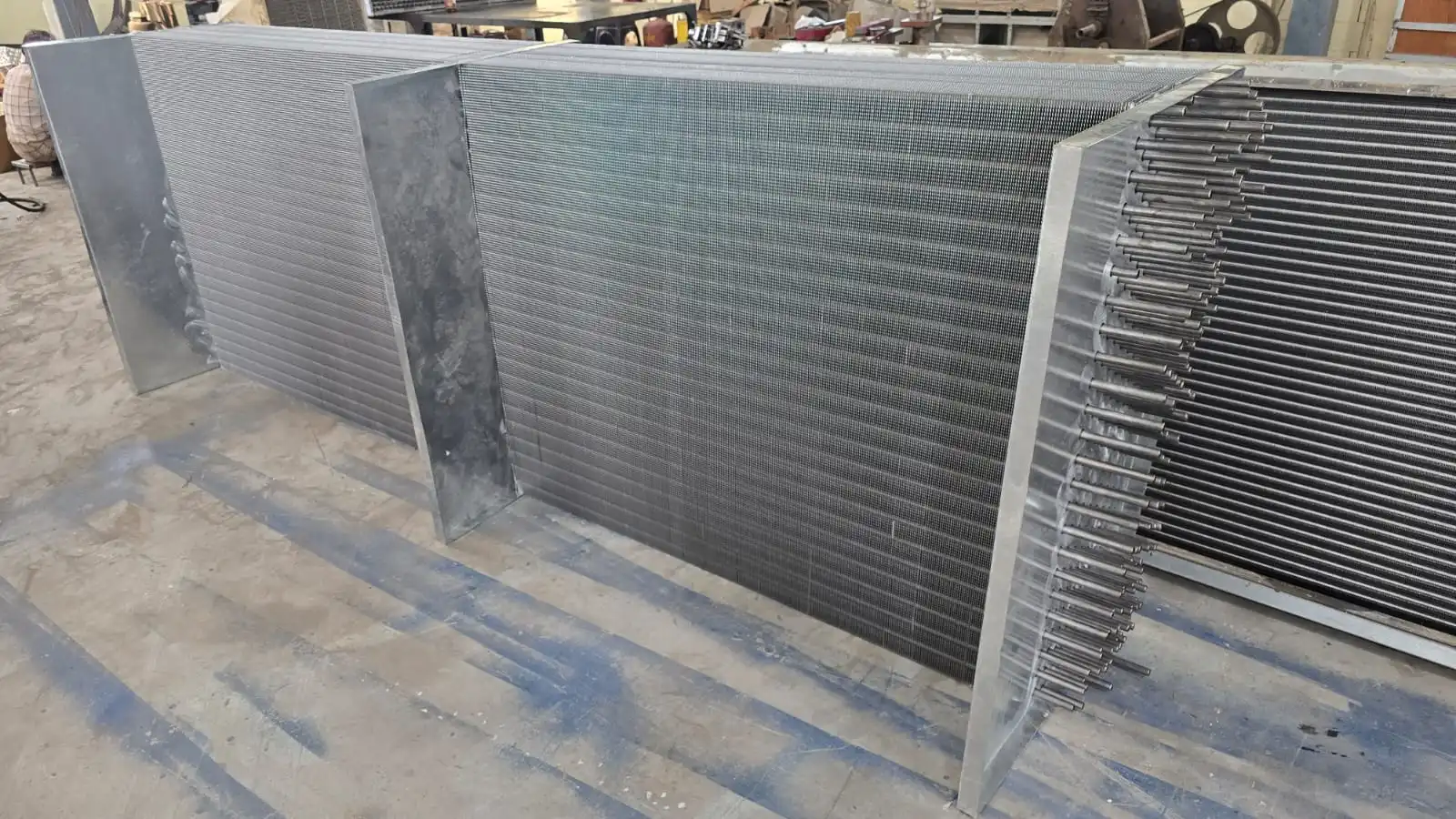

At their core, sine wave fin coils consist of a series of copper or aluminum tubes fitted with fins that follow a sinusoidal waveform. This geometry creates a ripple effect along the fin surface, increasing the contact area between the air (or fluid) and the coil while maintaining relatively low airflow resistance. Unlike corrugated fins, which have sharper bends, the sine wave pattern provides a more fluid transition, reducing the risk of fin damage and facilitating easier cleaning.

The design is particularly effective in plate-fin heat exchangers, where the fins are brazed or mechanically bonded to the tubes. Available in various fin densities (fins per inch), sine wave coils can be customized for specific tube diameters, such as 5/8-inch tubing, to suit diverse operational needs.

Key Benefits of Sine Wave Fin Coils

The adoption of sine wave fin coils offers several advantages over conventional fin types:

• Improved Heat Transfer: The wave-like surface generates controlled turbulence, boosting the convective heat transfer coefficient by up to 20-30% compared to flat fins. This allows for higher capacity in smaller footprints, ideal for space-constrained installations.
• Balanced Airflow Dynamics: While enhancing turbulence, sine wave fins maintain lower pressure drops than louvered or spine fins, reducing fan energy consumption and noise levels.
• Durability and Maintenance: The smooth contours resist accumulation of dust and debris, extending coil lifespan in clean indoor environments. They are less prone to corrosion in moderately aggressive conditions.
• Energy Efficiency: By maximizing heat dissipation with fewer fins per inch, these coils contribute to overall system efficiency, aligning with green building standards and reducing operational costs.

These benefits make sine wave fin coils especially valuable in applications requiring reliable, high-performance cooling without compromising on sustainability.

Applications in Industry

Sine wave fin coils find widespread use across multiple sectors:

• HVAC Systems: Employed in air handling units, chillers, and fan coil units for efficient space heating and cooling in commercial buildings.

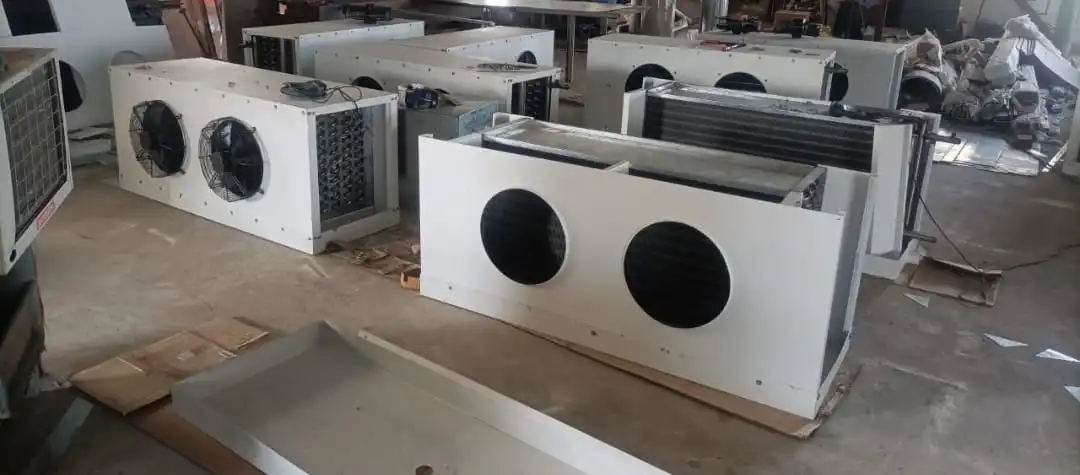

• Refrigeration and Cold Storage: Enhance evaporator performance in walk-in coolers and freezers, ensuring uniform temperature control.
• Industrial Processes: Integrated into dry coolers, condensers, and process heat exchangers for chemical plants and power generation facilities.
• Automotive and Aerospace: Used in compact heat rejection systems where weight and efficiency are critical.

Their versatility stems from the ability to pair with various refrigerants and working fluids, from R-410A in air conditioners to water-glycol mixtures in closed-loop systems.

Leading Sine Wave Fin Coil Manufacturers in Tamil Nadu

India's manufacturing hub in Tamil Nadu is home to several specialized producers of heat exchanger components, with Coimbatore emerging as a key center for innovation. Among the prominent players are sine wave fin coil manufacturers in Tamilnadu, Ken Engineering Coimbatore, renowned for their precision-engineered coils tailored to local and export markets. Ken Engineering leverages advanced fabrication techniques to deliver customizable sine wave fin solutions, emphasizing quality materials and rigorous testing to meet international standards like AHRI and ISO.

Other regional manufacturers, such as those in Coimbatore's industrial clusters, contribute to the ecosystem by offering complementary products like finned tube bundles and cooling towers, further solidifying Tamil Nadu's position in global heat transfer supply chains.

The Future of Sine Wave Fin Technology

As industries push toward net-zero emissions, sine wave fin coils are poised for further evolution, incorporating nanomaterials for even higher conductivity and smart sensors for predictive maintenance. Their role in decarbonizing HVAC and industrial processes cannot be overstated, promising a cooler, more efficient tomorrow.

In summary, sine wave fin coils represent a pinnacle of engineering ingenuity, blending form and function to drive thermal performance. For businesses seeking reliable suppliers, exploring options from established firms like Ken Engineering in Coimbatore can unlock the full potential of this technology. Whether upgrading an existing system or designing anew, investing in sine wave fin coils is a step toward sustainable excellence.
